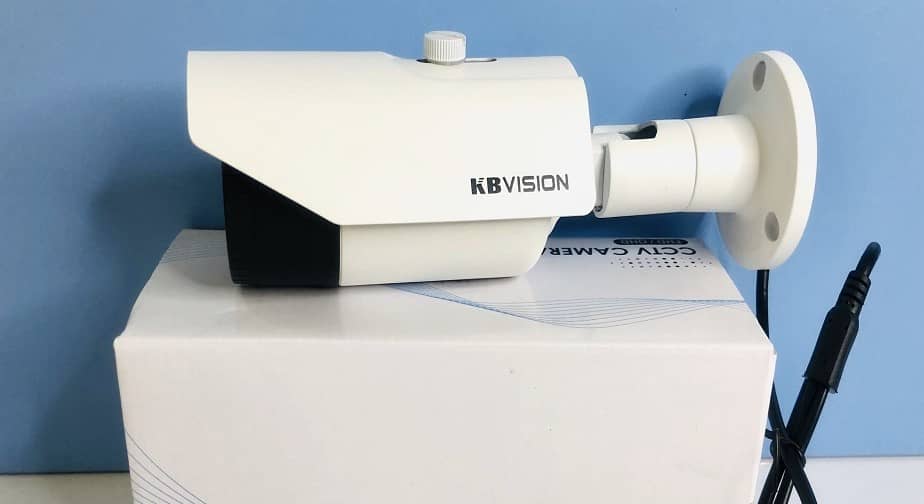

Instructions to switch CVI mode on Camera KX-2013S4

In this article, I will show you how to switch to CVI mode on Camera KX-2013S4 by shorting the pins on the mainboard .


How to do it

To switch back to CVI mode on Analog Camera KX-2013S4, do the following:

  • Step 1: Disassemble the Camera and find the 2 corresponding pins as shown in the picture (located on the mainboard assembly with the lens)
  • Step 2: Plug in the power and wait for the Camera to finish (approx. 30 seconds)
  • Step 3: Use tweezers or a wire core to short the 2 pins as shown in the picture for 30 seconds. The camera will switch to CVI image mode.

Good luck!
